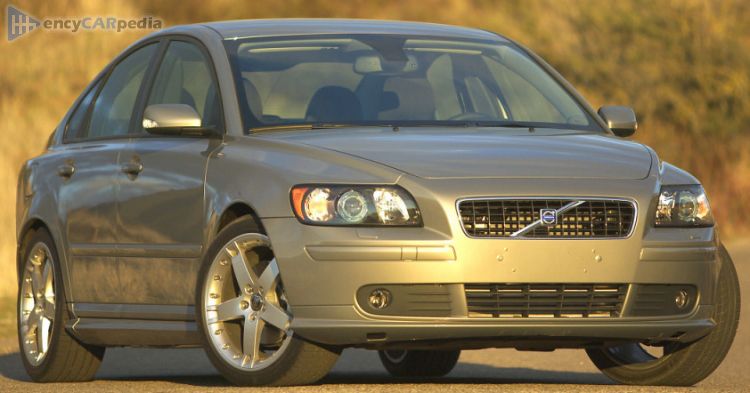

2004 S40 T5 AWD Specs2004 Volvo S40 T5 AWD Specs & Performance
2004 - 2007
Tech Specs Summary
-
- 2.5 L Inline 5 Turbo
-
- 143 mph
-
- 7.1 seconds
-
- 217 hp
-
- 27.3 mpg
-
- 4 Doors
-
- 5 Seats
-
- 14.3 ft3
-
- 3,384 lbs
- Front - AWD
Performance
- Top Speed
- 143 mph
- 0-62 mph
- 7.1 seconds
- 0-60 mph
- 6.9 seconds
- Power-to-Weight
- 15.59 lb/hp
- Power
- 217 hp
- Torque
- 236 lb·ft
Gas Mileage
- Combined
- 27.3 mpg
- Total Range
- 447 Miles
Gasoline Engine
- Capacity
- 2.5 Liter
- 153.8 in3
- Layout
- Inline 5
- Aspiration
- Turbo
- Peak Power
- 217 hp @ 5,000 RPM
- 220 ps @ 5,000 RPM
- Peak Torque
- 236 lb·ft @ 1,500 RPM
- 320 N·m @ 1,500 RPM
- Valvetrain
- DOHC
- Valves/Cylinder
- 4 (20v Total)
- Fuel Injection
- Multi-point
- Position
- Front Engine
- Orientation
- Transversal
- Fuel
- Gasoline
- Fuel Tank Capacity
- 16.4 Gallons
More Engine Specs
- Compression Ratio
- 9:1
- Bore x Stroke
- 3.268 x 3.669 in
- Bore-Stroke Ratio
- 0.89:1
- Under-Square
- Specific Output
- 1.41 hp/in3
- Power/Cylinder
- 43 hp
- Cylinder Volume
- 30.8 in3
- BMEP
- 231.3 PSI
- 16 Bar
Drivetrain & Chassis
- Driven Wheels
- AWD
- All-wheel Drive
- Transmission (MT)
- 6 Speeds
- Transmission (AT)
- 5 Speeds
- Tyre Sizes
- 205/55R16 W
- Front Suspension
- MacPherson Strut
- Rear Suspension
- Multi-Link
- Front Brakes
- Vented Disc
- Rear Brakes
- Solid Disc
Dimensions & Practicality
- Body
- Compact Sedan
- Door Count
- 4
- Seat Count
- 5
- Luggage Space
- 14.3 ft3
- Curb Weight
- 3,384 lbs
- Gross Weight
- 4,409 lbs
- Maximum Payload
- 1,025 lbs
- Towing Capacity
- 3,307 lbs
- Length
- 175.9 in
- Width
- 69.7 in
- Height
- 57.2 in
- Wheelbase
- 103.9 in
- Front Track
- 60.4 in
- Rear Track
- 60.4 in
★★★★★
★★★★★
