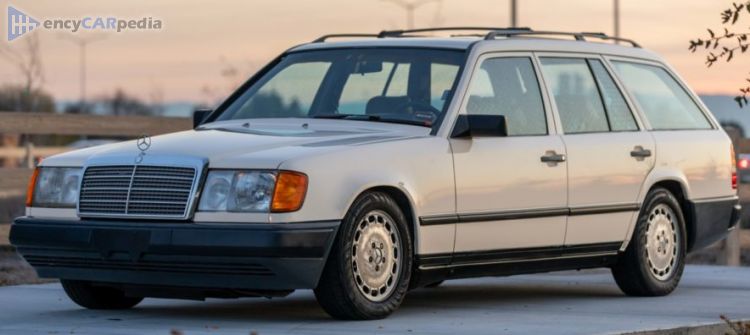

1987 300 TD Turbo 4MATIC Specs1987 (S124) Mercedes 300 TD Turbo 4MATIC Specs & Performance
1987, 1988 (S124)
 This car has not been completed yet.
Tech Specs Summary
-
- 3 L Inline 6 Turbo
-
- 117 mph
-
unavailable-
- 141 hp
-
unavailable-
- 5 Doors
-
- 5 Seats
-
- 18.7-62.5 ft3
-
unavailable- Front - AWD
Performance
- Top Speed
- 117 mph
- Power
- 141 hp
- Torque
- 197 lb·ft
Diesel Engine
- Capacity
- 3 Liter
- 182.8 in3
- Layout
- Inline 6
- Aspiration
- Turbo
- Peak Power
- 141 hp @ 4,600 RPM
- 143 ps @ 4,600 RPM
- Peak Torque
- 197 lb·ft @ 2,400 RPM
- 267 N·m @ 2,400 RPM
- Valvetrain
- SOHC
- Valves/Cylinder
- 2 (12v Total)
- Fuel Delivery
- Diesel Indirect
- Position
- Front Engine
- Orientation
- Longitudinal
- Fuel
- Diesel
- Fuel Tank Capacity
- 19 Gallons
More Engine Specs
- Compression Ratio
- 22:1
- Bore x Stroke
- 3.425 x 3.307 in
- Bore-Stroke Ratio
- 1.04:1
- Over-Square
- Specific Output
- 0.77 hp/in3
- Power/Cylinder
- 24 hp
- Cylinder Volume
- 30.5 in3
- BMEP
- 162.4 PSI
- 11.2 Bar
Drivetrain & Chassis
- Driven Wheels
- AWD
- All-wheel Drive
- Front Suspension
- MacPherson Strut
- Rear Suspension
- Multi-Link
Dimensions & Practicality
- Body
- Large Wagon
- Door Count
- 5
- Seat Count
- 5
- Luggage Space
- 18.7-62.5 ft3
- Turning Radius
- 36.8 ft
