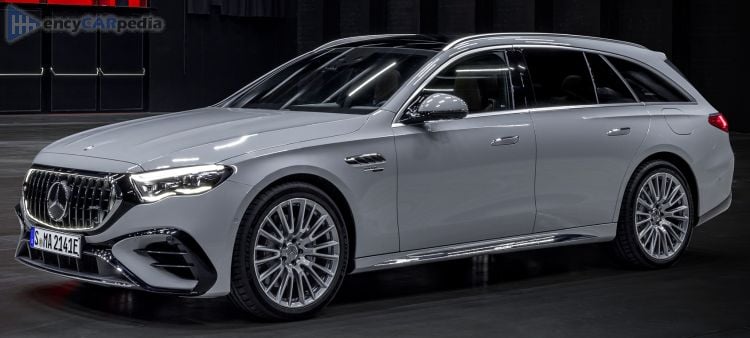

2024 AMG E 53 4MATIC+ Wagon Specs2024 (S214) Mercedes AMG E 53 4MATIC+ Wagon Specs & Performance
2024, 2025, 2026 (S214)
Tech Specs Summary
-
- 3 L Inline 6 Bi-Turbo PHEV
-
- 155 mph
-
- 4.1 seconds
-
- 604 hp
-
- 261.4 mpg
-
- 5 Doors
-
- 5 Seats
-
- 16.2-59.2 ft3
-
- 5,203 lbs
- Front - AWD
Performance
- Top Speed
- 155 mph
- 0-62 mph
- 4.1 seconds
- 0-60 mph
- 4.0 seconds
- Power-to-Weight
- 8.62 lb/hp
- Combined Power
- 604 hp
- Combined Torque
- 553 lb·ft
Gas Mileage
- Combined
- 261.4 mpg
- Tailpipe CO2
- 34 g/Mile
Electric Powertrain - Plug-in Hybrid
- Peak Power
- 161 hp
- 163 ps
- Peak Output
- 120 kW
- Peak Torque
- 354 lb·ft
- 480 N·m
- E-Mode Top Speed
- 87 mph
- E-Mode
- 35.2 kWh/100mi.
- 21.9 kWh/100km
- E-Mode MPGe
- 95.6 MPGe
- E-Mode Range
- 60 Miles
- E-Mode City
- 96.5 MPGe
- Battery Size
- 21.22 kWh (net)
- 28.6 kWh (gross)
- Charge Time (est.)
- 3.9 Hrs (7kW)
- 2.5 Hrs (11kW)
Gasoline Engine - Plug-in Hybrid
- Capacity
- 3 Liter
- 183 in3
- Layout
- Inline 6
- Aspiration
- Bi-Turbo
- Peak Power
- 443 hp @ 5,800 RPM
- 449 ps @ 5,800 RPM
- Peak Torque
- 413 lb·ft @ 2,200 RPM
- 560 N·m @ 2,200 RPM
- Valvetrain
- DOHC
- Valves/Cylinder
- 4 (24v Total)
- Fuel Delivery
- Direct Injection
- Position
- Front Engine
- Orientation
- Longitudinal
- Fuel
- Gasoline
- Fuel Tank Capacity
- 13.2 Gallons
More Engine Specs
- Engine Name
- M256 E30 DEH
- Compression Ratio
- 10.5:1
- Bore x Stroke
- 3.268 x 3.638 in
- Bore-Stroke Ratio
- 0.9:1
- Under-Square
- Specific Output
- 2.43 hp/in3
- Power/Cylinder
- 74 hp
- Cylinder Volume
- 30.5 in3
- BMEP
- 340.3 PSI
- 23.5 Bar
Drivetrain & Chassis
- Driven Wheels
- AWD
- All-wheel Drive
- Transmission (AT)
- 9 Speeds
- Front Tyre Size
- 255/45R19 Y
- Rear Tyre Size
- 285/40R19 Y
- Front Suspension
- Double Wishbone
- Rear Suspension
- Multi-Link
- Front Brakes
- Vented Disc
- Rear Brakes
- Vented Disc
Dimensions & Practicality
- Body
- Large Wagon
- Door Count
- 5
- Seat Count
- 5
- Luggage Space
- 16.2-59.2 ft3
- Turning Radius
- 41.1 ft
- Curb Weight
- 5,203 lbs
- Gross Weight
- 6,559 lbs
- Maximum Payload
- 1,356 lbs
- Towing Capacity
- 1,653-4,630 lbs
- Length
- 195.2 in
- Width
- 74.9 in
- Height
- 58.4 in
- Wheelbase
- 116.6 in
- Front Track
- 64.9 in
- Rear Track
- 63.3 in
★★★★★
★★★★★
