  3. Chrysler Voyager 2.5 CRD (2001-2008) - Specifications

Compare0

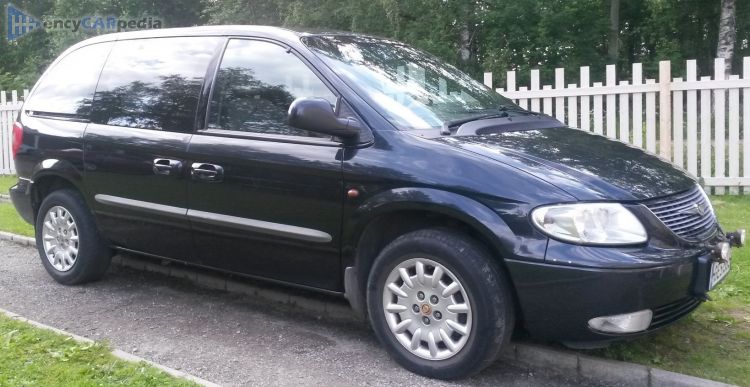

2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008 Chrysler Voyager 2.5 CRD

Spec Summary

Diesel EngineDiesel Engine

2.5L Inline 4 Turbo

Top SpeedTop Speed

115 mph

0 - 62 mph Acceleration0 - 62 mph Acceleration

unavailable

Maximum BHPMaximum BHP

140 BHP

Fuel Economy (combined)Fuel Economy (combined)

36.7 mpg

Drivetrain Layout

Front - FWD

Kerb WeightkgKerb Weight

2040 kg

See All Specs
i
Performance RatingPerformance Rating-
Environment RatingEnvironment Rating1
Practicality RatingPracticality Rating3.7
See Rankings
2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008 Chrysler Voyager 2.5 CRD

Performance Data

Top Speed

115 mph185 Km/h

Fuel Economy

36.7 mpg

Fuel Range

605 Miles974 Km

Power-to-Weight

69 BHP/Tonne14.57 kg/BHP

+

Diesel Engine - Turbo

Size

2.5 Litre2499cc

Configuration

Inline 4

Peak Power

140 BHP142 ps

Peak Power @

4000 RPM

Specific Output

56 BHP/L

Peak Torque

300 NM221 lb/ft

Peak Torque @

2000 RPM

Valvetrain

DOHC

Valves/Cylinder

4

Compression Ratio

17.5:1

Bore x Stroke

92mm x 94mm

Fuel Injection

Diesel Direct

Position

Front Engine

Orientation

Transversal

Fuel Tank Size

75 Litres

+

FWD Drivetrain

Gearbox (MT)

5 Gears

Tyres

215/65R16 T

Front Suspension

MacPherson

Rear Suspension

Solid Axle

Front Brakes

Vented Disc

Rear Brakes

Solid Disc

+

General Details

Doors

5

Seats

7

Cargo Space

660-3640 L

Kerb Weight

2040 kg

Gross Weight

2570 kg

Tow Capacity

1600 kg

Length

4808 mm

Width

1997 mm

Height

1749 mm

Wheelbase

2878 mm

Front Track

1600 mm

Rear Track

1626 mm

+
